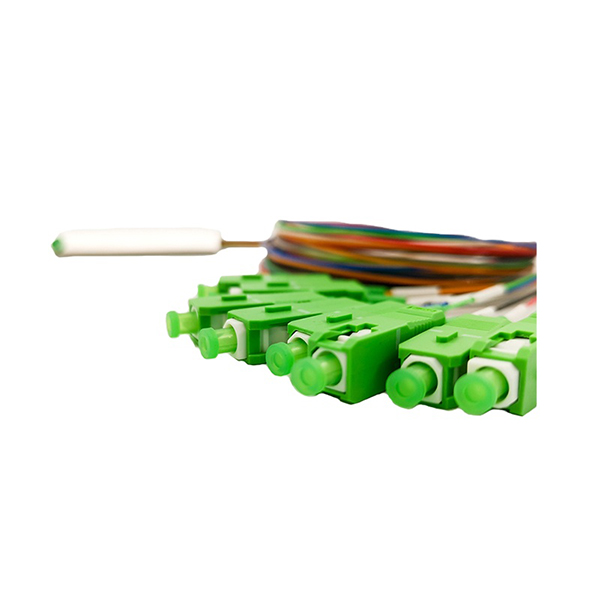

PLC optical splitter is an integrated waveguide optical power distribution device based on quartz substrate. It has the characteristics of small size, wide operating wavelength range, high reliability and good uniformity. It is especially suitable for passive optical networks (EPON, BPON, GPON, etc.) connects the central office and the terminal device and implements the splitting of the optical signal.
| Product Specification | |||
| Package Style | Steel Tube, 0.9mm,colored | Insertion Loss | ≤13.6dB |
| Configuration Type | 1×16 | Return Loss | ≥50dB |
| Fiber Grade | G.657A1 | Loss Uniformity | ≤1.5dB |
| Fiber Mode | Singlemode | Directivity | ≥55dB |
| Connector Type | SC/APC | Polarization Dependent Loss | ≤0.3dB |
| Split Ratio | 50/50 | Temperature Dependent Loss | ≤0.8dB |
| Fiber Type | Ribbon Fiber | Wavelength Dependent Loss | ≤0.5dB |
| Steel Tube Dimensions (HxWxD) | 4x50x12mm | Operating Bandwidth | 1260~1650nm |
| Input/Output Fiber Diameter | 250μm | Operating Temperature | -20 to 70°C (-4 to 158°F) |
| Input/Output Fiber Length | 1.5m | Storage Temperature | -40 to 85°C (-40 to 185°F) |
