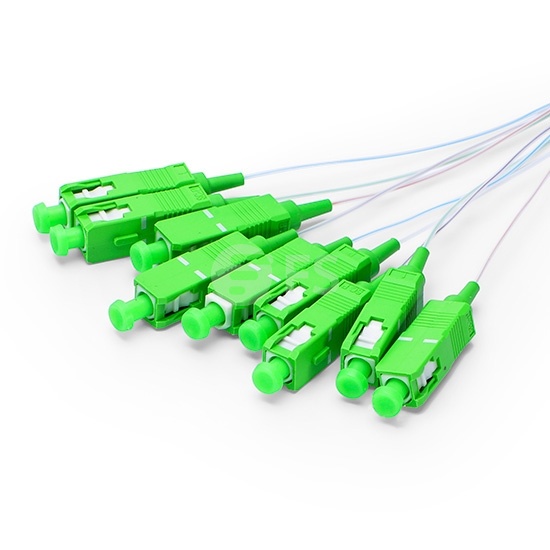

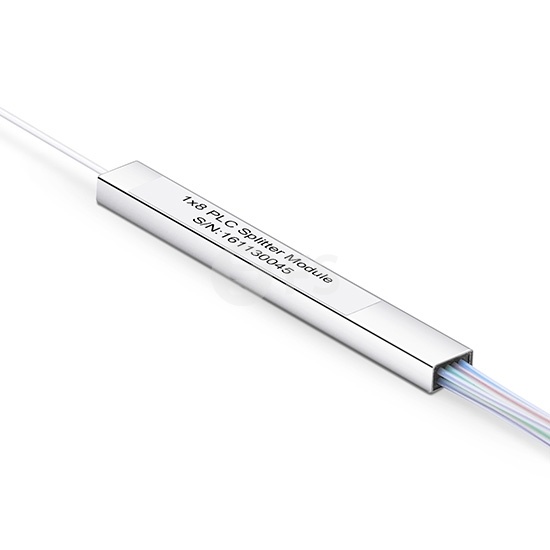

PLC optical splitter is an integrated waveguide optical power distribution device based on quartz substrate. It has the characteristics of small size, wide operating wavelength range, high reliability and good uniformity. It is especially suitable for passive optical networks (EPON, BPON, GPON, etc.) connects the central office and the terminal device and implements the splitting of the optical signal.
| Parameter | Unit | Specification | ||||||||
| Operating Wavelength | nm | 1260 ~ 1650 | ||||||||
| Type | 1×2 | 1×4 | 1×6 | 1×8 | 1×12 | 1×16 | 1×24 | 1×32 | 1×64 | |
| Insertion Loss | dB | ≤3.8 | ≤7.4 | ≤8.8 | ≤10.5 | ≤12.9 | ≤13.5 | ≤15.1 | ≤16.8 | ≤20.5 |
| Uniformity | dB | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.5 | ≤2.0 |
| PDL | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 |
| Directivity | dB | ≥55 | ||||||||
| Return Loss | dB | ≥55 | ||||||||
| Operating Temperature | °C | -10~ +75 | ||||||||
| Storage Temperature | °C | -40 ~ +85 | ||||||||
| Fiber length | m | 1m or custom length | ||||||||
| Fiber Type | / | Corning G.657A1/G.657A2 | ||||||||
| Power Handling | mW | 300 | ||||||||
| Note：2xN，the IL plus 0.2dB. | ||||||||||
