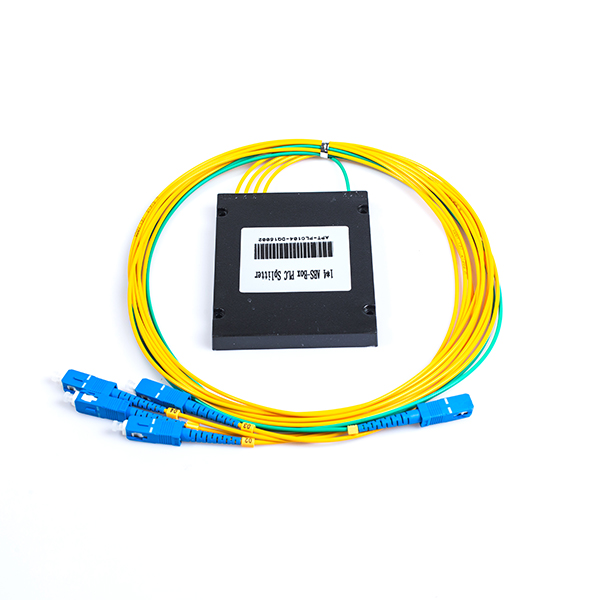

Pigtailed ABS splitter is most commonly used in the PON networks. It provides the complete protection for inner optical components and cable, as well as designed for the convenient and reliable installation, but its volume is relatively large. It's mainly used for various connection and distribution products(outdoor fiber distribution box) or network cabinets.
| Package Style | Steel Tube, Bare Fiber | Insertion Loss | ≤7.3dB |
| Configuration Type | 1×32 | Return Loss | ≥50dB |
| Fiber Grade | G.657A1 | Loss Uniformity | ≤1.5dB |
| Fiber Mode | Singlemode | Directivity | ≥55dB |
| Connector Type | None | Polarization Dependent Loss | ≤0.3dB |
| Split Ratio | 50/50 | Temperature Dependent Loss | ≤0.8dB |
| Fiber Type | Ribbon Fiber | Wavelength Dependent Loss | ≤0.5dB |
| Steel Tube Dimensions (HxWxD) | 0.16″x1.97″x0.28″ (4x50x7mm) | Operating Bandwidth | 1260~1650nm |
| Input/Output Fiber Diameter | 250μm | Operating Temperature | -20 to 70°C (-4 to 158°F) |
| Input/Output Fiber Length | 1.5m | Storage Temperature | -40 to 85°C (-40 to 185°F) |
