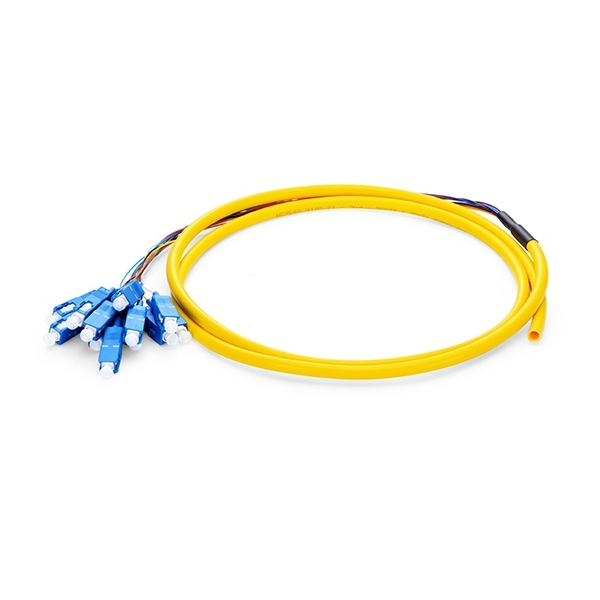

SC/UPC 12 Fibers SM Jacketed Colored Fiber Optic Pigtail 1.5M

Simplex SC/UPC 9/125 Single Mode 12 Fiber Optic Jacketed pigtail, 0.9 mm PVC. Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications. This 9/125 OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G Ethernet connections. SC/UPC connector is widely used.It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.

FTTX 600x600 1

Optical fiber pigtail 12Fibers SC/UPC SM 0.9 PVC 3M jacketed

  • G.652D Bend Insensitive Fiber & 10mm Min. Bend Radius

  • Grade A Precision Zirconia Ferrules Ensure Consistent Low Loss

  • Flexible and Abrasion-resistant PVC (Riser) Jacket, Durable for Indoor Use

  • Compliant to IEC-61754 and TIA-604 (FOCIS)

Diverse Telecom Applications

  • Telecom network1 400X400

    LAN, WAN and Metro Networks

  • data center 400x400 1

    FTTH project & FTTX Deployments

  • FTTX 600x600 1

    CATV System

  • Ethernet network

    GPON, EPON

Technical Specifications

Connector Type12 fibers,SC/UPC,0.9MM
Fiber GradeG.652.D(Compatible with G.657.A1 or G657A2)
Fiber ModeOS2 9/125μm
Wavelength1310/1550nm
Insertion Loss≤0.3dB
Return Loss≥60dB
Min. Bend Radius (Fiber Core)10mm
Min. Bend Radius (Fiber Cable)10D/5D (Dynamic/Static)
Attenuation at 1310 nm0.36 dB/km
Attenuation at 1550 nm0.22 dB/km
Fiber CountSimplex
Cable Diameter10mm
Cable JacketPVC or LSZH
PolarityA(Tx) to B(Rx)
Operating Temperature-20~70°C
Storage Temperature



-40~80°C
