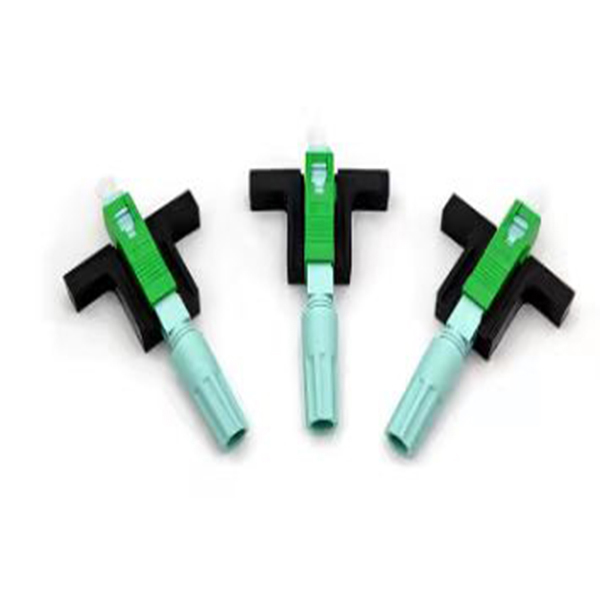

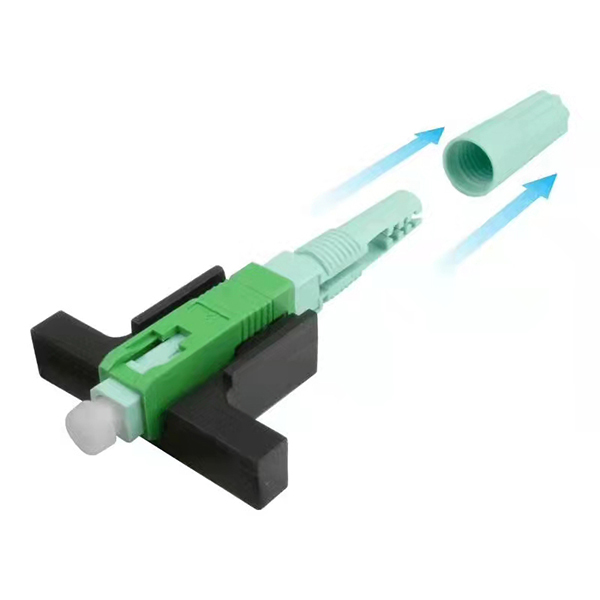

QDAPT SC/APC-C fast connectors make fiber terminations quick, easy and reliable. These fiber optic connectors offer terminations without any hassles and require no epoxy, no polishing, no splicing, no heating and can achieve similar excellent transmission parameters as standard polishing and splicing technology. Our fast connector can greatly reduce the assembly and set up time. The pre-polished connectors are mainly applied to FTTH cable in FTTH projects, directly in the end user site.
| Fiber Type | SM |
| Surface polishing | SC/APC |
| Color | Green |
| insertion loss | ≤0.3dB |
| return loss | ≥60dB |
| joint endurance | 10Times |
| Material of shell | ABS |
| Size | 2.0mm×3.0mm&2.0mm×1.6mm or FTTH patch cord |
| Fiber Diameter | 125um |
| Tensile Strength | ≥20N |
| Lock Strength | ≥20N |
| Temperature Cycle | ≤0.3dB |
| Virbration | ≤0.2dB |
| Temperature | -40℃~+80℃ |
