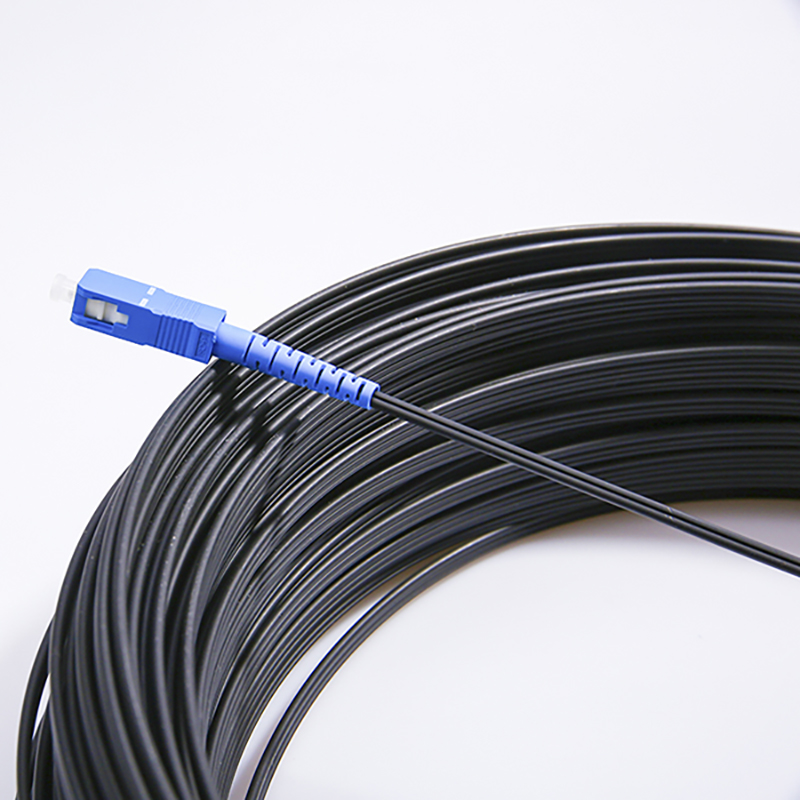

Drop cable optical patchcord SC/UPC-SC/UPC-SM-PVC-3.0x2mm-GJXH or GJFXCH

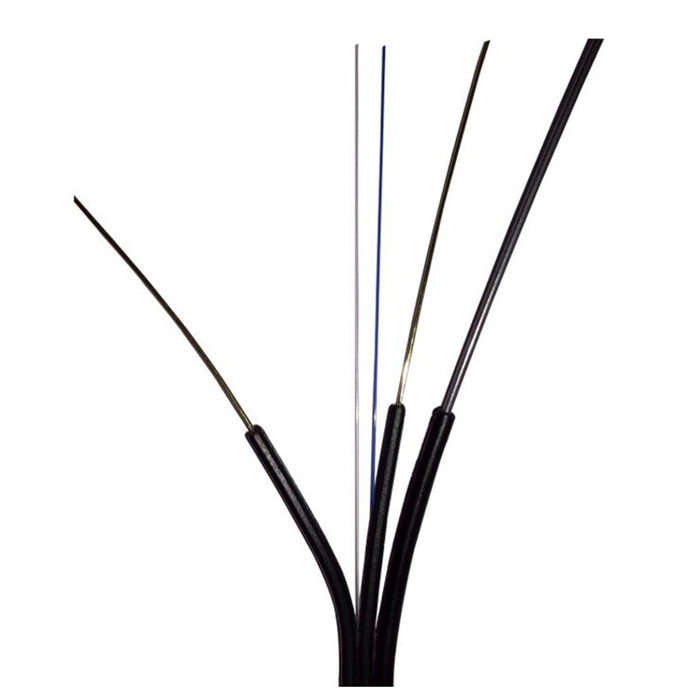

QDAPT FTTH fiber optic cable is Fiber to Home, which used for linking the equipment and components in the fiber optic network. The fibers is position between two parallel steel wire. Then this cable is completed with black or white LSZH sheath.

FTTX 600x600 1

Drop cable optical patchcord SC/UPC-SC/UPC-SM-PVC-3.0x2mm-GJXH or GJFXCH

  • G.652D/G.657A1/G.657A2 Bend Insensitive Fiber & 10mm Min. Bend Radius

  • Grade A Precision Zirconia Ferrules Ensure Consistent Low Loss

  • Flexible and Abrasion-resistant PVC (Riser) Jacket, Durable for Indoor Use

  • Compliant to IEC-61754 and TIA-604 (FOCIS)

Diverse Telecom Applications

  • Telecom network1 400X400

    LAN, WAN and Metro Networks

  • data center 400x400 1

    FTTH project & FTTX Deployments

  • FTTX 600x600 1

    CATV System

  • Ethernet network

    GPON, EPON

Technical Specifications

Part NumberBow-Type Drop Cable GJXH
Fiber Count1/2/4 core
Strength MemberTwo parallel FRP/Steel wire
Cable Dimension (WxH approx.)(2.0±0.2)x(3.0±0.2)mm
Out JacketLSZH
Out Jacket colorblack or white
ApplicationFTTH cable (Fiber to the home), used indoor, Access network
